High-Efficiency Grain Damping is an important piece of equipment to control the water content of the grain during cleaning in flour mills. Stainless steel. Bi-directional screw, Prevent free water, an intensive Intermixing

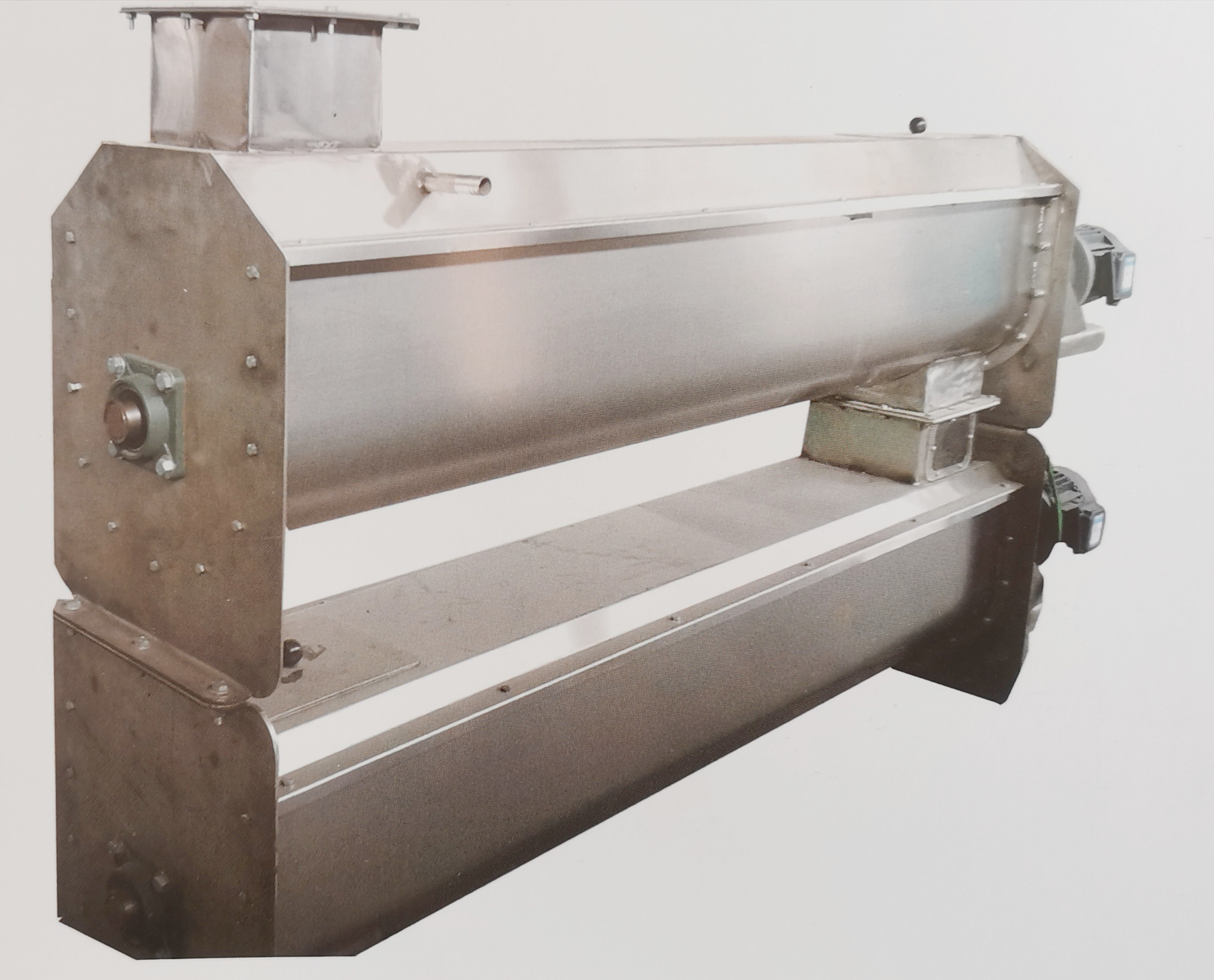

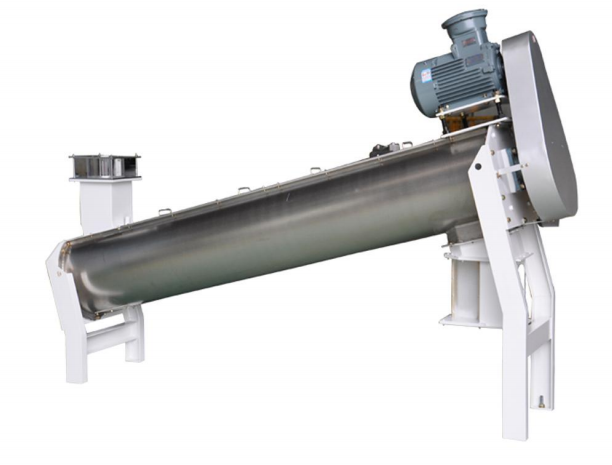

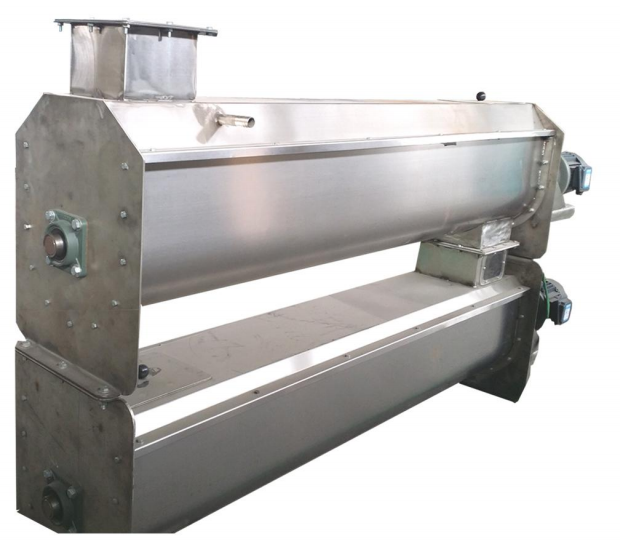

Dampener/Double Dampener
This machine is used in the cleaning process of flour mills to adjust the moisture of wheat, and is suitable for large, medium and small flour processing enterprises. The unique arc blade makes the wheat water evenly, reduces the binding force between the wheat bran and the endosperm, and effectively improves the grinding and screening effect.
| Model | 40×200 | 40×250 | 50×280 | 60×300 |
| Capacity(t/h) | 15 | 18 | 26 | 36 |
| Main shaft speed(kw) | 410±10 | 450±10 | 450±10 | 450±10 |
| Diameter cylinder | 400 | 400 | 500 | 600 |
| Max water(%) | 4 | 4 | 4 | 4 |
| Power(kw) | 5.5 | 7.5 | 11 | 15 |
| Precision(%) | ≤±0.5 | ≤±0.5 | ≤±0.5 | ≤±0.5 |
| Break wheat increase rate(%) | ＜0.2 | ＜0.2 | ＜0.2 | ＜0.2 |
| Dimension(L×B×H)（mm) | 2326×600×1785 | 2768×600×1820 | 3164×706×2005 | 3455×830×1750 |
This Dampener is used for the wetted part after cleaning
Features:
1. The machine can be combined with the computer system to make the water landing more accurate
2. Simple structure, easy maintenance
3. The machine has large output, low energy consumption, and even watering
