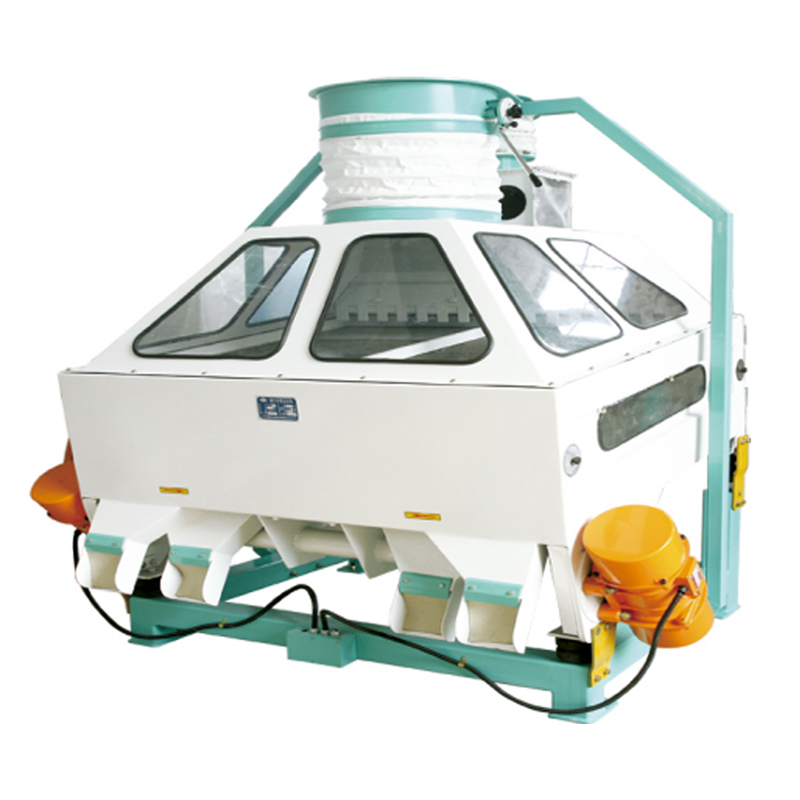

Destoner
Destoner is applied for efficient separation of stones and pebbles, glass, and other high-density matter from the stream of grain. The destoner is also used to process rye, rice, and soybeans.High separating efficiency - excellent grain cleaning
Characteristic of Function
◆De-stone on double layers therefore stones and heavy impurities an be separated effectively
◆With stable property and no stone is involved in grain
◆Low energy consumption and large yield
◆Compact structure and reliable mechanical strength
◆Suitable for assorted materials such as rice wheat, vegetable, seeds, bean, etc.
| Model | 100a | 125a | 150a | 180a | 200a | 250a |
| Screen width(mm) | 1000 | 1250 | 1500 | 1800 | 100*2 | 125*2 |
| Capacity（t/h） |
maize 8-10 wheat13-15 paddy 9-11 |
maize 10-112 wheat 15-18 paddy 11-13 |
maize 12-14 wheat 17-22 paddy 13-15 |
maize 15-17 wheat 22-28 paddy 16-18 |
maize 16-20 wheat 35-30 paddy 18-22 |
maize 20-24 wheat 30-36 paddy 22-25 |
| Power（KW） | 2×0.55 | 2×0.55 | 2×0.55 | 2×0.55 | 2×0.75 | 2×0.75 |
| Air(M^3/h) | 8400 | 11000 | 13800 | 16800 | 8400×2 | 11000×2 |
| Pressure(kg) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Dimension(L×B×H)(mm) | 1600×1426×2156 | 1660×1676×2156 | 1660×2000×2156 | 1660×2300×2156 | 1660×2620×2156 | 1660×3100×2156 |
The second step in the cleaning part of this flow chart is to use this machine
The equipment mainly used for cleaning raw grain is equipped with special stainless steel screen and vibrating motor, which can not only remove sand and gravel efficiently, but also classify according to the quality of grain. Small, no dust spillage, simple operation, safety and so on.
