Roller Mill
Roller Mill

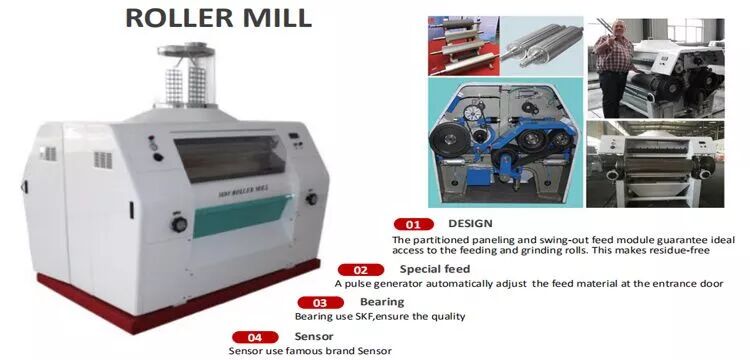

1)The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls. This makes residue-free cleaning possible.
2) A pulse generator automatically adjusts the feed material at the entrance door
| Model | mml25/100 | mml25/125 |
| Roller(diameter×length) | &250mm×1000mm | &250mm×1250mm |
| FAST ROLLER SPEED | 450-600r/min | 450-600r/min |
| FAST ROLLER SPEED RATIO | 1.25:1 1.5:1 2:1 2.5:1 | |
| FEED ROLLER SPEED RATIO | 1:1 1.4:1 2:1 | |
| MOTOR | 6LEVEL/30,22,18.5,15,11,7.5,5.5(KW) | |
| PRESSURE | 6-7×10^5Pa | |
| DIMENSION(MM) | 1850×1600×2100 | 2100×1600×2100 |
| WEIGHT | 3300KG | 4100KG |
After degerming, put the prepared corn granules into the flour mill and start to grind them into flour
Features:
1. The machine can be combined with the computer system to make the water landing more accurate
2. Simple structure, easy maintenance
3. The machine has large output, low energy consumption, and even watering
